PropVR Unified API (1.0.0)

Download OpenAPI specification:

PropVR Unified API Documentation

This comprehensive API provides both dashboard management and client integration capabilities for PropVR's platform with the following features:

Authentication

All endpoints require JWT authentication via the Authorization header:

Authorization: Bearer <your_jwt_token>

Each organization receives dedicated JWT tokens for secure API access. Contact PropVR support to receive your authentication credentials.

For Client Integration APIs, you can also generate tokens using the API Keys management interface:

How to Create a JWT Token

Step 1: Access the API Keys Section

Navigate to the Settings page in your PropVR dashboard
Click on the "API Keys" tab in the settings interface
You will see the API Keys management interface with:
- A list of existing API keys (if any)
- Status indicators (Active/Inactive)
- Creation and expiration dates
- A blue "+ Create API Key" button

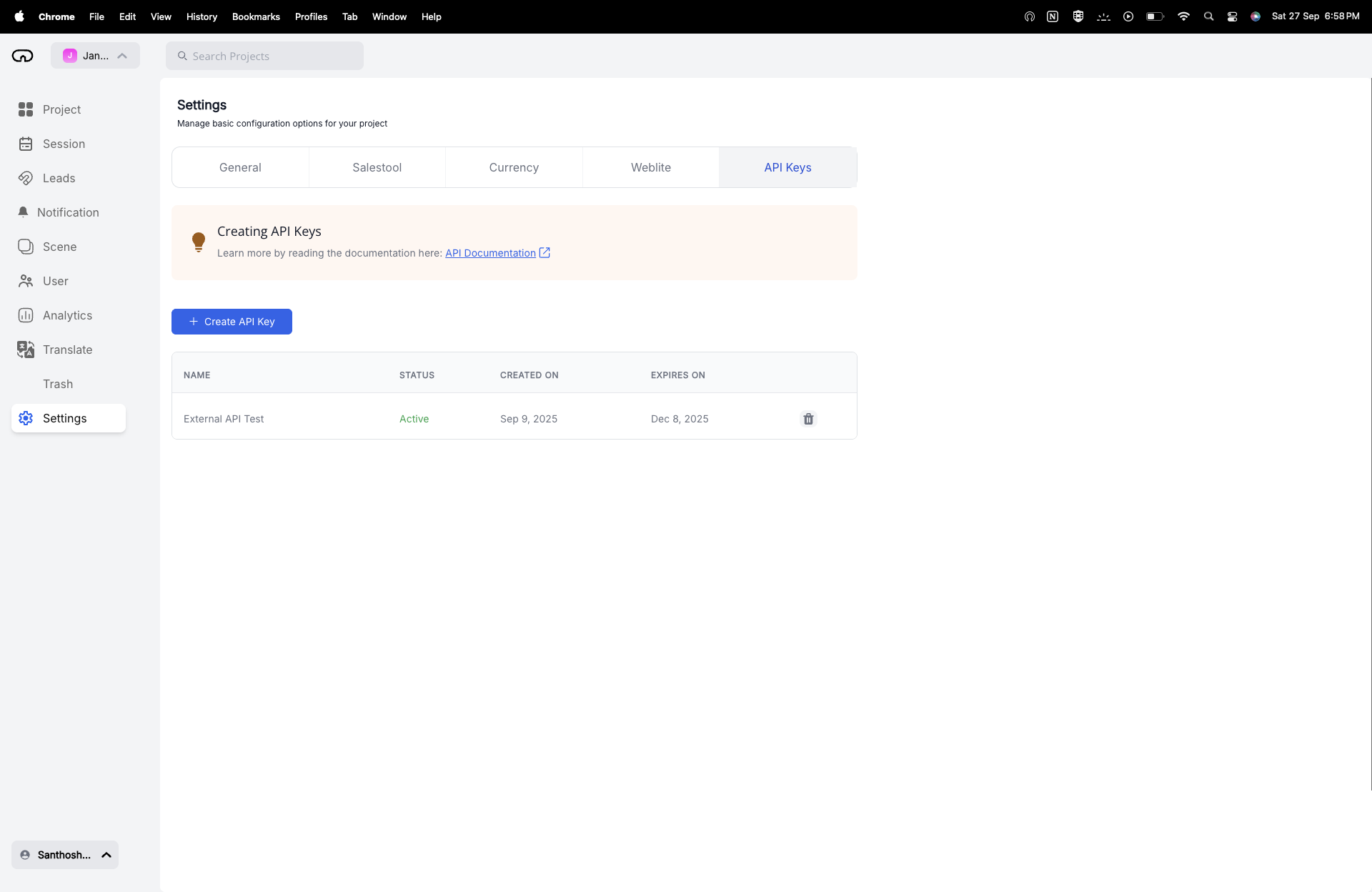

API Keys Management Interface

Step 2: Create a New API Key

Click the blue "+ Create API Key" button
A modal dialog will appear with the title "Create API Key"

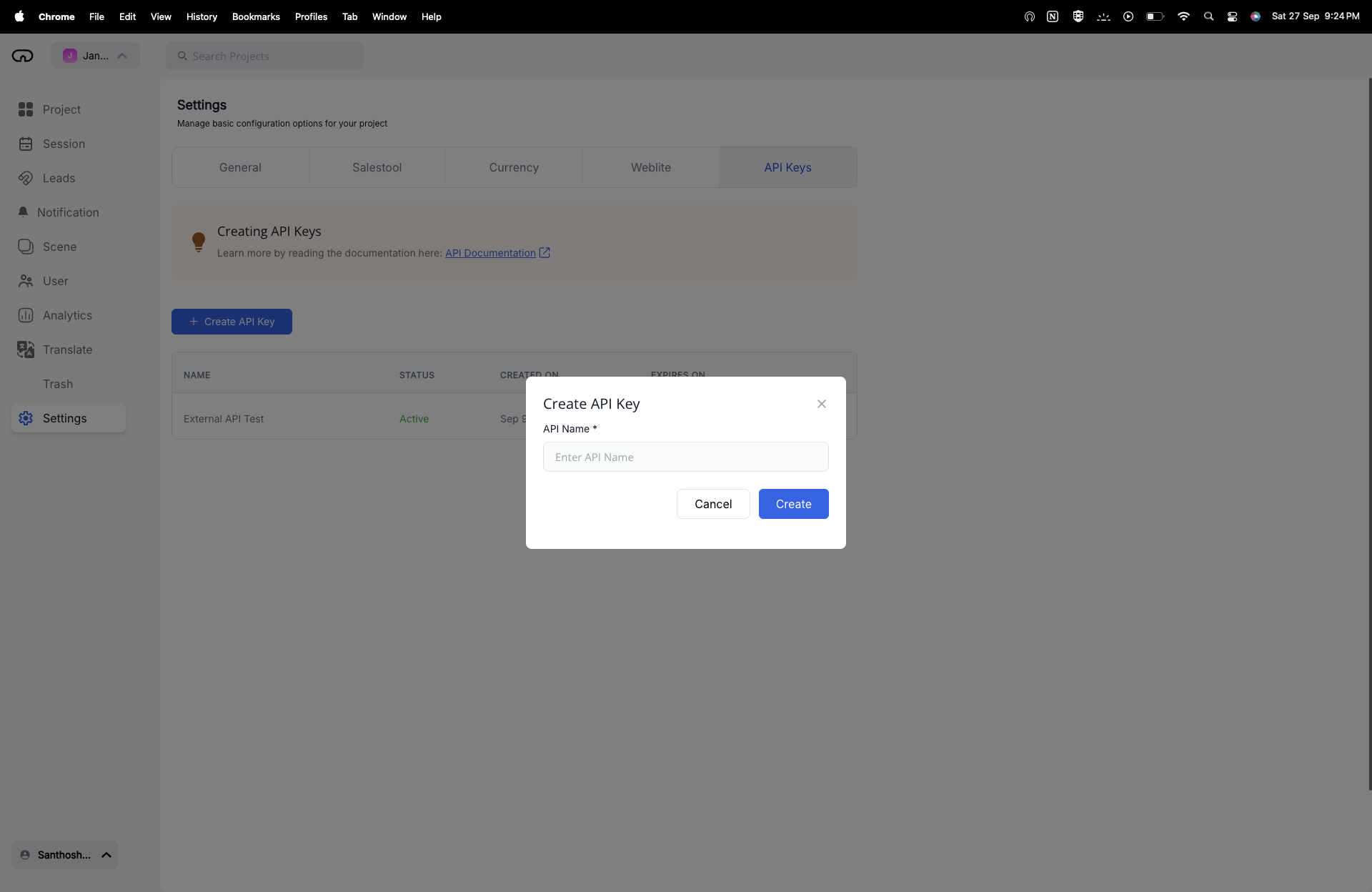

Create API Key Modal

Step 3: Configure Your API Key

In the modal dialog, you will see:
- API Name field (required) - Enter a descriptive name
- Cancel button (gray) - To close without creating
- Create button (blue) - To generate the token
Enter a descriptive name for your API key in the "API Name" field
- Examples: "Production API", "Development Testing", "External Integration"
Click the blue "Create" button to generate the token

Step 4: Copy Your JWT Token

IMPORTANT: The JWT token will be displayed only once immediately after creation
Copy the token immediately and store it securely
Once you close the modal, the token will no longer be visible
If you lose the token, you'll need to create a new API key

Step 5: Use Your JWT Token

Include the token in the Authorization header of your API requests:

Authorization: Bearer <your_jwt_token>

Security Best Practices:

Store your JWT token securely and never share it publicly
Regularly rotate your API keys for enhanced security

Click Here to Generate JWT Token

API Paths

Note: The paths shown in this documentation are clean, RESTful representations. The actual implementation paths on your server may differ. Please refer to your route configuration for the exact endpoint URLs to use in your integration.

Response Format

All endpoints follow a consistent response format:

{
  "status": 1,     // 1 for success, 0 for error
  "data": {},      // Response data (on success)
  "message": "",   // Success message
  "error": ""      // Error message (on failure)
}

Unitplans

Manage unit plans for property projects. Create, retrieve, update, and delete unit plan configurations including floor plans, layouts, and property specifications.

Create a new unitplan

Create a comprehensive unit plan with images and metadata

This endpoint allows you to create detailed unit plans including:

Basic information (name, type, measurements)
Image uploads (unitplan images with automatic thumbnail generation)
Property details (bedrooms, bathrooms, furnishing status)
Commercial/residential classification
Tour and gallery associations

File Upload Requirements:

For flat and villa_floor unit types, unitplan_image is required
For plot, office and shop unit types, unitplan_image is optional
Images are automatically resized to generate thumbnails (1280x720)
Supported formats: JPG, PNG

Authorizations:

BearerAuth

Request Body schema: multipart/form-data
required

name required	string Name of the unitplan
is_furnished required	boolean Whether the unit is furnished
unit_type required	string Enum: "villa" "flat" "villa_floor" "plot" "office" "shop" Type of unit
project_id	string ID of the project this unitplan belongs to
building_id	string ID of the building this unitplan belongs to
type	string Type classification of the unitplan
measurement	number Area measurement (required for non-villa_floor types)
measurement_type	string Enum: "sqft" "sqmt" Unit of measurement (required for non-villa_floor types)
tour_id	string Associated virtual tour ID
bedrooms	string Enum: "studio" "1BHK" "2BHK" "3BHK" "4BHK" "5BHK" "6BHK" "7BHK" "8BHK" "9BHK" "10BHK" "0BHK" "penthouse" "townhouse" "podium" "suite" "plot" "office" "shop" "duplex" "1.5BHK" "2.5BHK" "3.5BHK" "4.5BHK" "5.5BHK" "6.5BHK" "7.5BHK" "8.5BHK" "9.5BHK" "10.5BHK" Number of bedrooms (required for non-villa_floor types)
is_residential	boolean Whether the unit is residential
bathrooms	number Number of bathrooms
suite_area	string Suite area measurement
suite_area_type	string Enum: "sqft" "sqmt" Suite area measurement unit
parent_unitplan	string Parent unitplan ID (required for villa_floor type)
order	number Display order
scene_id	string Associated scene ID
gallery_id	string Associated gallery ID (JSON string)
exterior_type	string Enum: "scene" "gallery" Type of exterior view
style	string Architectural style
balcony_measurement	number Balcony area measurement
balcony_measurement_type	string Enum: "sqft" "sqmt" Balcony measurement unit
is_commercial	boolean Whether the unit is commercial
unitplan_image	string <binary> Unitplan image file (required for flat and villa_floor types)

Responses

Response samples

200
400
500

Content type

application/json

{"status": 1,
"data": {"_id": "507f1f77bcf86cd799439017",
"project_id": "507f1f77bcf86cd799439011",
"building_id": "507f1f77bcf86cd799439012",
"type": "residential",
"name": "Luxury 3BHK Apartment",
"thumbnail": "https://storage.googleapis.com/propvr-assets/unitplans/thumbnails/507f1f77bcf86cd799439017.jpg",
"image_url": "https://storage.googleapis.com/propvr-assets/unitplans/507f1f77bcf86cd799439017.jpg",
"measurement": 1250.5,
"measurement_type": "sqft",
"tour_id": "507f1f77bcf86cd799439013",
"bedrooms": "3BHK",
"is_residential": true,
"is_commercial": false,
"bathrooms": 2,
"is_furnished": true,
"unit_type": "flat",
"exterior_type": "scene",
"scene_id": "507f1f77bcf86cd799439015",
"gallery_id": ["507f1f77bcf86cd799439016"
],
"floor_unitplans": ["507f1f77bcf86cd799439019"
],
"style": "modern",
"balcony_measurement": 50.5,
"balcony_measurement_type": "sqft",
"suite_area": "1100",
"suite_area_type": "sqft",
"created_at": "2024-01-15T10:30:00Z",
"updated_at": "2024-01-15T14:45:00Z"
}
}

Get all unitplans for a project

Retrieve all unit plans associated with a specific project

This endpoint returns a comprehensive list of all unit plans within a project, including:

Basic unitplan information
Image URLs and thumbnails
Measurements and specifications
Associated tours and galleries

Authorizations:

BearerAuth

path Parameters

project_id

required

string

Example: 507f1f77bcf86cd799439011

The ID of the project to retrieve unitplans for

Responses

Response samples

200
404

Content type

application/json

{"status": 1,
"data": [{"_id": "507f1f77bcf86cd799439017",
"project_id": "507f1f77bcf86cd799439011",
"building_id": "507f1f77bcf86cd799439012",
"type": "residential",
"name": "Luxury 3BHK Apartment",
"thumbnail": "https://storage.googleapis.com/propvr-assets/unitplans/thumbnails/507f1f77bcf86cd799439017.jpg",
"image_url": "https://storage.googleapis.com/propvr-assets/unitplans/507f1f77bcf86cd799439017.jpg",
"measurement": 1250.5,
"measurement_type": "sqft",
"tour_id": "507f1f77bcf86cd799439013",
"bedrooms": "3BHK",
"is_residential": true,
"is_commercial": false,
"bathrooms": 2,
"is_furnished": true,
"unit_type": "flat",
"exterior_type": "scene",
"scene_id": "507f1f77bcf86cd799439015",
"gallery_id": ["507f1f77bcf86cd799439016"
],
"floor_unitplans": ["507f1f77bcf86cd799439019"
],
"style": "modern",
"balcony_measurement": 50.5,
"balcony_measurement_type": "sqft",
"suite_area": "1100",
"suite_area_type": "sqft",
"created_at": "2024-01-15T10:30:00Z",
"updated_at": "2024-01-15T14:45:00Z"
}
]
}

Update an existing unitplan

Update unit plan details and optionally replace images

This endpoint allows partial updates to existing unit plans. You can:

Update any combination of unitplan properties
Replace images (with automatic thumbnail generation)
Modify measurements, classifications, and associations
Update gallery and tour links

File Upload Notes:

Image uploads are optional for updates
When updating to flat unit type, unitplan_image becomes required
New images automatically generate resized thumbnails

Authorizations:

BearerAuth

Request Body schema: multipart/form-data
required

unitplan_id required	string ID of the unitplan to update
project_id required	string ID of the project this unitplan belongs to
building_id	string ID of the building this unitplan belongs to
type	string Type classification of the unitplan
name	string Name of the unitplan
measurement	number Area measurement
measurement_type	string Enum: "sqft" "sqmt" Unit of measurement
tour_id	string Associated virtual tour ID
bedrooms	string Enum: "studio" "1BHK" "2BHK" "3BHK" "4BHK" "5BHK" "6BHK" "7BHK" "8BHK" "9BHK" "10BHK" "0BHK" "penthouse" "townhouse" "podium" "suite" "plot" "office" "shop" "duplex" "1.5BHK" "2.5BHK" "3.5BHK" "4.5BHK" "5.5BHK" "6.5BHK" "7.5BHK" "8.5BHK" "9.5BHK" "10.5BHK" Number of bedrooms
is_residential	boolean Whether the unit is residential
bathrooms	number Number of bathrooms
is_furnished	boolean Whether the unit is furnished
unit_type	string Enum: "villa" "flat" "villa_floor" "plot" "office" "shop" Type of unit
suite_area	string Suite area measurement
suite_area_type	string Enum: "sqft" "sqmt" Suite area measurement unit
scene_id	string Associated scene ID
gallery_id	string Associated gallery ID (JSON string)
floor_unitplans	string Floor unitplans (JSON string)
exterior_type	string Enum: "scene" "gallery" Type of exterior view
style	string Architectural style
balcony_measurement	number Balcony area measurement
balcony_measurement_type	string Enum: "sqft" "sqmt" Balcony measurement unit
is_commercial	boolean Whether the unit is commercial
unitplan_image	string <binary> Updated unitplan image file (required when changing unit_type to flat)

Responses

Response samples

200
400
500

Content type

application/json

{"status": 1,
"data": {"_id": "507f1f77bcf86cd799439017",
"project_id": "507f1f77bcf86cd799439011",
"building_id": "507f1f77bcf86cd799439012",
"type": "residential",
"name": "Luxury 3BHK Apartment",
"thumbnail": "https://storage.googleapis.com/propvr-assets/unitplans/thumbnails/507f1f77bcf86cd799439017.jpg",
"image_url": "https://storage.googleapis.com/propvr-assets/unitplans/507f1f77bcf86cd799439017.jpg",
"measurement": 1250.5,
"measurement_type": "sqft",
"tour_id": "507f1f77bcf86cd799439013",
"bedrooms": "3BHK",
"is_residential": true,
"is_commercial": false,
"bathrooms": 2,
"is_furnished": true,
"unit_type": "flat",
"exterior_type": "scene",
"scene_id": "507f1f77bcf86cd799439015",
"gallery_id": ["507f1f77bcf86cd799439016"
],
"floor_unitplans": ["507f1f77bcf86cd799439019"
],
"style": "modern",
"balcony_measurement": 50.5,
"balcony_measurement_type": "sqft",
"suite_area": "1100",
"suite_area_type": "sqft",
"created_at": "2024-01-15T10:30:00Z",
"updated_at": "2024-01-15T14:45:00Z"
}
}

Delete a unitplan

Safely delete a unit plan and move it to trash

This endpoint performs a soft delete by moving the unitplan to trash rather than permanently deleting it. The operation:

Moves the unitplan to trash with a timestamp
Checks for linked units and provides warnings
Returns information about affected units

Authorizations:

BearerAuth

path Parameters

project_id

required

string

Example: 507f1f77bcf86cd799439011

The ID of the project containing the unitplan

Request Body schema: application/json
required

unitplan_id

required

string

ID of the unitplan to delete

Responses

Request samples

Payload

Content type

application/json

{"unitplan_id": "507f1f77bcf86cd799439017"
}

Response samples

201
400
500

Content type

application/json

{"status": 1,
"message": "Unitplan deleted successfully. Please update the following units that were linked to this unitplan",
"linkedUnits": ["Unit A-101",
"Unit A-102"
],
"unitCount": 2
}

Units

Handle individual property units within projects. Filter, update, and manage unit status, pricing, metadata, and collection operations for real estate properties.

Create Filter Units

Create and process filter units for a specific project. This endpoint allows you to:

Process multiple units by name
Update unit status
Set pricing and currency information
Bulk process units with filtering capabilities

Authorizations:

BearerAuth

header Parameters

authorization

required

string

Example: Bearer your_jwt_token_here

API key for authentication

Request Body schema: application/json
required

project_id required	string Unique identifier of the project
units required	Array of strings Array of unit names to process
status required	string New status for the unit. Must be a valid status defined in your project's Settings → Status configuration.
price	string^[0-9]+(\.[0-9]+)?$ Price for the units (optional, numeric string)
currency	string Enum: "aed" "ars" "aud" "bgn" "brl" "bsd" "cad" "chf" "clp" "cny" "cop" "czk" "dkk" "dop" "egp" "eur" "fjd" "gbp" "gtq" "hkd" "hrk" "huf" "idr" "ils" "inr" "isk" "jpy" "krw" "kzt" "mxn" "myr" "nok" "nzd" "pab" "pen" "php" "pkr" "pln" "pyg" "ron" "rub" "sek" "sgd" "thb" "try" "twd" "uah" "usd" "uyu" "vnd" "zar" Currency code for the price (optional)

Responses

Request samples

Payload

Content type

application/json

{"project_id": "507f1f77bcf86cd799439011",
"units": ["Unit-A101",
"Unit-A102",
"Unit-B201"
],
"status": "available",
"price": "750000",
"currency": "usd"
}

Response samples

200
400
401
403
500

Content type

application/json

{"status": 1,
"data": {"successful": ["Unit-A101",
"Unit-A102"
],
"failed": [ ],
"sessionId": "session_507f1f77bcf86cd799439011"
},
"message": "Units processed successfully",
"error": "string"
}

Drop Unit Collection Filters

Drop (delete) unit collection filters for a specific project and session. This endpoint allows you to:

Remove all filtered units from a specific session
Clean up temporary unit collections
Reset filter states for a project session
Free up resources by dropping unused collections

Authorizations:

BearerAuth

header Parameters

authorization

required

string

Example: Bearer your_jwt_token_here

API key for authentication

Request Body schema: application/json
required

project_id required	string Unique identifier of the project
session_id required	string Session identifier for the unit collection to drop

Responses

Request samples

Payload

Content type

application/json

{"project_id": "507f1f77bcf86cd799439011",
"session_id": "session_507f1f77bcf86cd799439011"
}

Response samples

200
400
401
403
500

Content type

application/json

{"status": 1,
"message": "Collection Dropped Successfully !"
}

Update Unit By Metadata

Update unit information using metadata for a specific project. This endpoint allows you to:

Update unit properties based on metadata matching
Modify unit status, price, measurements, and currency
Process single unit updates with comprehensive validation
Maintain data integrity through metadata-based matching

Authorizations:

BearerAuth

header Parameters

project_id

required

string

Example: 507f1f77bcf86cd799439011

Project ID to identify which project the unit belongs to

Request Body schema: application/json
required

Array (= 1 items)

Any of

status required	string New status for the unit. Must be a valid status defined in your project's Settings → Status configuration.
required	object non-empty Metadata object used to identify and match the unit
price	string^[0-9]+(\.[0-9]+)?$ New price for the unit (numeric string)
currency	string Enum: "aed" "ars" "aud" "bgn" "brl" "bsd" "cad" "chf" "clp" "cny" "cop" "czk" "dkk" "dop" "egp" "eur" "fjd" "gbp" "gtq" "hkd" "hrk" "huf" "idr" "ils" "inr" "isk" "jpy" "krw" "kzt" "lbp" "mxn" "myr" "nok" "nzd" "pab" "pen" "php" "pkr" "pln" "pyg" "qar" "ron" "rub" "sar" "sek" "sgd" "thb" "try" "twd" "uah" "usd" "uyu" "vnd" "zar" "jod" "" Currency code for the price
measurement	number Unit measurement/area
measurement_type	string Enum: "sqft" "sqmt" Type of measurement unit

Responses

Request samples

Payload

Content type

application/json

Example

Update unit status and price

[{"metadata": {"unit_number": "A101",
"floor": "1",
"building": "Tower A"
},
"status": "reserved",
"price": "850000",
"currency": "usd"
}
]

Response samples

200
400
401
404
500

Content type

application/json

{"status": 1,
"message": "updated unit successfully"
}

Webhooks Leads

Webhook events for leads. When you subscribe to lead events, PropVR POSTs payloads to your targetUrl on lead_created, lead_updated, and lead_deleted events.

lead_created

Event triggered when a new lead is created, such as when a user joins a session. PropVR sends an HTTP POST request containing the full lead document to your targetUrl.

Authorizations:

BearerAuth

Request Body schema: application/json

_id	string Lead document ID
session_id	string Session ID the lead is associated with
organization_id	string Organization ID
name	string Lead name
phone_number	string Lead phone number
email	string <email> Lead email
duration_minutes	number Duration in minutes (e.g. session duration)
joining_time	string <date-time> When the lead joined (ISO 8601)
interested_in	Array of arrays Array of interest objects (e.g. project/unit interest)
lead_product_interest	string Product interest category
lead_industry_type	string Industry type
lead_source	string Source of the lead (e.g. sales_session, dashboard)
start_time	string <date-time> Start time (ISO 8601)
user_id	string User ID associated with the lead
next_interaction_time	string <date-time> Next interaction timestamp
last_interaction_time	string <date-time> Last interaction timestamp
end_time	string <date-time> End time (ISO 8601)
lead_creation_time	string <date-time> When the lead was created
lead_status	string Lead status (e.g. new, contacted)
thread_id	string Thread/conversation identifier

Responses

Request samples

Payload

Content type

application/json

{"_id": "string",
"session_id": "string",
"organization_id": "string",
"name": "string",
"phone_number": "string",
"email": "[email protected]",
"duration_minutes": 0,
"joining_time": "2019-08-24T14:15:22Z",
"interested_in": [ ],
"lead_product_interest": "string",
"lead_industry_type": "string",
"lead_source": "string",
"start_time": "2019-08-24T14:15:22Z",
"user_id": "string",
"next_interaction_time": "2019-08-24T14:15:22Z",
"last_interaction_time": "2019-08-24T14:15:22Z",
"end_time": "2019-08-24T14:15:22Z",
"lead_creation_time": "2019-08-24T14:15:22Z",
"lead_status": "string",
"thread_id": "string"
}

Response samples

Content type

application/json

{"_id": "507f1f77bcf86cd799439022",
"session_id": "session_abc",
"organization_id": "org_xyz",
"name": "John Doe",
"phone_number": "+1234567890",
"email": "[email protected]",
"duration_minutes": 15,
"joining_time": "2024-06-15T10:00:00.000Z",
"interested_in": [ ],
"lead_product_interest": "residential",
"lead_industry_type": "real_estate",
"lead_source": "sales_session",
"start_time": "2024-06-15T10:00:00.000Z",
"user_id": "user_001",
"next_interaction_time": "2024-06-16T10:00:00.000Z",
"last_interaction_time": "2024-06-15T10:15:00.000Z",
"end_time": "2024-06-15T10:15:00.000Z",
"lead_creation_time": "2024-06-15T10:00:00.000Z",
"lead_status": "new",
"thread_id": "thread_abc"
}

lead_updated

Event triggered when a lead is updated. PropVR sends an HTTP POST request containing the updated lead document to your targetUrl.

Authorizations:

BearerAuth

Request Body schema: application/json

_id	string Lead document ID
session_id	string Session ID the lead is associated with
organization_id	string Organization ID
name	string Lead name
phone_number	string Lead phone number
email	string <email> Lead email
duration_minutes	number Duration in minutes (e.g. session duration)
joining_time	string <date-time> When the lead joined (ISO 8601)
interested_in	Array of arrays Array of interest objects (e.g. project/unit interest)
lead_product_interest	string Product interest category
lead_industry_type	string Industry type
lead_source	string Source of the lead (e.g. sales_session, dashboard)
start_time	string <date-time> Start time (ISO 8601)
user_id	string User ID associated with the lead
next_interaction_time	string <date-time> Next interaction timestamp
last_interaction_time	string <date-time> Last interaction timestamp
end_time	string <date-time> End time (ISO 8601)
lead_creation_time	string <date-time> When the lead was created
lead_status	string Lead status (e.g. new, contacted)
thread_id	string Thread/conversation identifier

Responses

Request samples

Payload

Content type

application/json

{"_id": "string",
"session_id": "string",
"organization_id": "string",
"name": "string",
"phone_number": "string",
"email": "[email protected]",
"duration_minutes": 0,
"joining_time": "2019-08-24T14:15:22Z",
"interested_in": [ ],
"lead_product_interest": "string",
"lead_industry_type": "string",
"lead_source": "string",
"start_time": "2019-08-24T14:15:22Z",
"user_id": "string",
"next_interaction_time": "2019-08-24T14:15:22Z",
"last_interaction_time": "2019-08-24T14:15:22Z",
"end_time": "2019-08-24T14:15:22Z",
"lead_creation_time": "2019-08-24T14:15:22Z",
"lead_status": "string",
"thread_id": "string"
}

Response samples

Content type

application/json

{"_id": "507f1f77bcf86cd799439022",
"session_id": "session_abc",
"organization_id": "org_xyz",
"name": "John Doe",
"phone_number": "+1234567890",
"email": "[email protected]",
"duration_minutes": 20,
"joining_time": "2024-06-15T10:00:00.000Z",
"interested_in": [ ],
"lead_product_interest": "residential",
"lead_industry_type": "real_estate",
"lead_source": "sales_session",
"start_time": "2024-06-15T10:00:00.000Z",
"user_id": "user_001",
"next_interaction_time": "2024-06-16T10:00:00.000Z",
"last_interaction_time": "2024-06-15T10:20:00.000Z",
"end_time": "2024-06-15T10:20:00.000Z",
"lead_creation_time": "2024-06-15T10:00:00.000Z",
"lead_status": "contacted",
"thread_id": "thread_abc"
}

lead_deleted

Event triggered when a lead is deleted. PropVR sends an HTTP POST request containing the updated lead document to your targetUrl.

Authorizations:

BearerAuth

Request Body schema: application/json

_id	string Lead document ID
session_id	string Session ID the lead is associated with
organization_id	string Organization ID
name	string Lead name
phone_number	string Lead phone number
email	string <email> Lead email
duration_minutes	number Duration in minutes (e.g. session duration)
joining_time	string <date-time> When the lead joined (ISO 8601)
interested_in	Array of arrays Array of interest objects (e.g. project/unit interest)
lead_product_interest	string Product interest category
lead_industry_type	string Industry type
lead_source	string Source of the lead (e.g. sales_session, dashboard)
start_time	string <date-time> Start time (ISO 8601)
user_id	string User ID associated with the lead
next_interaction_time	string <date-time> Next interaction timestamp
last_interaction_time	string <date-time> Last interaction timestamp
end_time	string <date-time> End time (ISO 8601)
lead_creation_time	string <date-time> When the lead was created
lead_status	string Lead status (e.g. new, contacted)
thread_id	string Thread/conversation identifier

Responses

Request samples

Payload

Content type

application/json

{"_id": "string",
"session_id": "string",
"organization_id": "string",
"name": "string",
"phone_number": "string",
"email": "[email protected]",
"duration_minutes": 0,
"joining_time": "2019-08-24T14:15:22Z",
"interested_in": [ ],
"lead_product_interest": "string",
"lead_industry_type": "string",
"lead_source": "string",
"start_time": "2019-08-24T14:15:22Z",
"user_id": "string",
"next_interaction_time": "2019-08-24T14:15:22Z",
"last_interaction_time": "2019-08-24T14:15:22Z",
"end_time": "2019-08-24T14:15:22Z",
"lead_creation_time": "2019-08-24T14:15:22Z",
"lead_status": "string",
"thread_id": "string"
}

Response samples

Content type

application/json

{"_id": "507f1f77bcf86cd799439022",
"session_id": "session_abc",
"organization_id": "org_xyz",
"name": "John Doe",
"phone_number": "+1234567890",
"email": "[email protected]",
"duration_minutes": 15,
"joining_time": "2024-06-15T10:00:00.000Z",
"interested_in": [ ],
"lead_product_interest": "residential",
"lead_industry_type": "real_estate",
"lead_source": "sales_session",
"start_time": "2024-06-15T10:00:00.000Z",
"user_id": "user_001",
"next_interaction_time": "2024-06-16T10:00:00.000Z",
"last_interaction_time": "2024-06-15T10:15:00.000Z",
"end_time": "2024-06-15T10:15:00.000Z",
"lead_creation_time": "2024-06-15T10:00:00.000Z",
"lead_status": "new",
"thread_id": "thread_abc"
}

Webhooks Sessions

Webhook events for sessions. When you subscribe to session events, PropVR POSTs payloads to your targetUrl on session_created, session_updated, and session_deleted events.

session_created

Event fired on session creation. PropVR sends an HTTP POST containing the complete session document to your targetUrl.

Authorizations:

BearerAuth

Request Body schema: application/json

_id	string Session document ID
duration_minutes	number Session duration in minutes
status	string Enum: "scheduled" "active" "on-going" "ended" "on-hold" "cancelled" Session status (e.g. scheduled, active, ended, cancelled)
pixel_duration_minutes	number Pixel-streaming duration in minutes
code	string Session code
start	string <date-time> Session start time (ISO 8601)
type	string Session type (e.g. default, pixel_streaming)
scheduled_end_time	string <date-time> Scheduled end time
invite_link	string Invite link URL
organization_id	string Organization ID
user_id	string User ID
project_id	string Project ID
source	string Session source (e.g. dashboard, api)
last_interaction_time	string <date-time> Last interaction timestamp
config	object Session configuration object
is_scheduled	boolean Whether the session is scheduled
schedule_time	string <date-time> Schedule time (ISO 8601)
end_time	string End time
instance_start_time	string or null <date-time> Actual instance start time
instance_end_time	string or null <date-time> Actual instance end time
description	string Session description
participants	Array of arrays Array of participant/lead objects
thread_id	string Thread identifier
tag	string or null Optional tag
is_pixelstreaming_active	boolean Whether pixel streaming is active
pixel_streaming_link	string or null Pixel streaming URL
is_reserved	boolean Whether the session is reserved

Responses

Request samples

Payload

Content type

application/json

{"_id": "string",
"duration_minutes": 0,
"status": "scheduled",
"pixel_duration_minutes": 0,
"code": "string",
"start": "2019-08-24T14:15:22Z",
"type": "string",
"scheduled_end_time": "2019-08-24T14:15:22Z",
"invite_link": "string",
"organization_id": "string",
"user_id": "string",
"project_id": "string",
"source": "string",
"last_interaction_time": "2019-08-24T14:15:22Z",
"config": { },
"is_scheduled": true,
"schedule_time": "2019-08-24T14:15:22Z",
"end_time": "string",
"instance_start_time": "2019-08-24T14:15:22Z",
"instance_end_time": "2019-08-24T14:15:22Z",
"description": "string",
"participants": [ ],
"thread_id": "string",
"tag": "string",
"is_pixelstreaming_active": true,
"pixel_streaming_link": "string",
"is_reserved": true
}

Response samples

Content type

application/json

{"_id": "507f1f77bcf86cd799439033",
"duration_minutes": 30,
"status": "scheduled",
"pixel_duration_minutes": 0,
"code": "SESSION001",
"start": "2024-06-15T10:00:00.000Z",
"type": "pixel_streaming",
"scheduled_end_time": "2024-06-15T10:30:00.000Z",
"invite_link": "https://propvr.in/session/SESSION001",
"organization_id": "org_xyz",
"user_id": "user_001",
"project_id": "proj_abc",
"source": "dashboard",
"last_interaction_time": "2024-06-15T10:00:00.000Z",
"config": { },
"is_scheduled": true,
"schedule_time": "2024-06-15T10:00:00.000Z",
"end_time": "",
"instance_start_time": null,
"instance_end_time": null,
"description": "Property viewing session",
"participants": [ ],
"thread_id": "thread_xyz",
"tag": null,
"is_pixelstreaming_active": false,
"pixel_streaming_link": null,
"is_reserved": false
}

session_updated

Event fired on session update. PropVR sends an HTTP POST containing the complete session document to your targetUrl.

Authorizations:

BearerAuth

Request Body schema: application/json

_id	string Session document ID
duration_minutes	number Session duration in minutes
status	string Enum: "scheduled" "active" "on-going" "ended" "on-hold" "cancelled" Session status (e.g. scheduled, active, ended, cancelled)
pixel_duration_minutes	number Pixel-streaming duration in minutes
code	string Session code
start	string <date-time> Session start time (ISO 8601)
type	string Session type (e.g. default, pixel_streaming)
scheduled_end_time	string <date-time> Scheduled end time
invite_link	string Invite link URL
organization_id	string Organization ID
user_id	string User ID
project_id	string Project ID
source	string Session source (e.g. dashboard, api)
last_interaction_time	string <date-time> Last interaction timestamp
config	object Session configuration object
is_scheduled	boolean Whether the session is scheduled
schedule_time	string <date-time> Schedule time (ISO 8601)
end_time	string End time
instance_start_time	string or null <date-time> Actual instance start time
instance_end_time	string or null <date-time> Actual instance end time
description	string Session description
participants	Array of arrays Array of participant/lead objects
thread_id	string Thread identifier
tag	string or null Optional tag
is_pixelstreaming_active	boolean Whether pixel streaming is active
pixel_streaming_link	string or null Pixel streaming URL
is_reserved	boolean Whether the session is reserved

Responses

Request samples

Payload

Content type

application/json

{"_id": "string",
"duration_minutes": 0,
"status": "scheduled",
"pixel_duration_minutes": 0,
"code": "string",
"start": "2019-08-24T14:15:22Z",
"type": "string",
"scheduled_end_time": "2019-08-24T14:15:22Z",
"invite_link": "string",
"organization_id": "string",
"user_id": "string",
"project_id": "string",
"source": "string",
"last_interaction_time": "2019-08-24T14:15:22Z",
"config": { },
"is_scheduled": true,
"schedule_time": "2019-08-24T14:15:22Z",
"end_time": "string",
"instance_start_time": "2019-08-24T14:15:22Z",
"instance_end_time": "2019-08-24T14:15:22Z",
"description": "string",
"participants": [ ],
"thread_id": "string",
"tag": "string",
"is_pixelstreaming_active": true,
"pixel_streaming_link": "string",
"is_reserved": true
}

Response samples

Content type

application/json

{"_id": "507f1f77bcf86cd799439033",
"duration_minutes": 30,
"status": "active",
"pixel_duration_minutes": 15,
"code": "SESSION001",
"start": "2024-06-15T10:00:00.000Z",
"type": "pixel_streaming",
"scheduled_end_time": "2024-06-15T10:30:00.000Z",
"invite_link": "https://propvr.in/session/SESSION001",
"organization_id": "org_xyz",
"user_id": "user_001",
"project_id": "proj_abc",
"source": "dashboard",
"last_interaction_time": "2024-06-15T10:15:00.000Z",
"config": { },
"is_scheduled": true,
"schedule_time": "2024-06-15T10:00:00.000Z",
"end_time": "",
"instance_start_time": "2024-06-15T10:00:00.000Z",
"instance_end_time": null,
"description": "Property viewing session",
"participants": [ ],
"thread_id": "thread_xyz",
"tag": null,
"is_pixelstreaming_active": true,
"pixel_streaming_link": "https://stream.example.com/session",
"is_reserved": false
}

session_deleted

Event fired on session deletion. PropVR sends an HTTP POST containing the complete session document to your targetUrl.

Authorizations:

BearerAuth

Request Body schema: application/json

_id	string Session document ID
duration_minutes	number Session duration in minutes
status	string Enum: "scheduled" "active" "on-going" "ended" "on-hold" "cancelled" Session status (e.g. scheduled, active, ended, cancelled)
pixel_duration_minutes	number Pixel-streaming duration in minutes
code	string Session code
start	string <date-time> Session start time (ISO 8601)
type	string Session type (e.g. default, pixel_streaming)
scheduled_end_time	string <date-time> Scheduled end time
invite_link	string Invite link URL
organization_id	string Organization ID
user_id	string User ID
project_id	string Project ID
source	string Session source (e.g. dashboard, api)
last_interaction_time	string <date-time> Last interaction timestamp
config	object Session configuration object
is_scheduled	boolean Whether the session is scheduled
schedule_time	string <date-time> Schedule time (ISO 8601)
end_time	string End time
instance_start_time	string or null <date-time> Actual instance start time
instance_end_time	string or null <date-time> Actual instance end time
description	string Session description
participants	Array of arrays Array of participant/lead objects
thread_id	string Thread identifier
tag	string or null Optional tag
is_pixelstreaming_active	boolean Whether pixel streaming is active
pixel_streaming_link	string or null Pixel streaming URL
is_reserved	boolean Whether the session is reserved

Responses

Request samples

Payload

Content type

application/json

{"_id": "string",
"duration_minutes": 0,
"status": "scheduled",
"pixel_duration_minutes": 0,
"code": "string",
"start": "2019-08-24T14:15:22Z",
"type": "string",
"scheduled_end_time": "2019-08-24T14:15:22Z",
"invite_link": "string",
"organization_id": "string",
"user_id": "string",
"project_id": "string",
"source": "string",
"last_interaction_time": "2019-08-24T14:15:22Z",
"config": { },
"is_scheduled": true,
"schedule_time": "2019-08-24T14:15:22Z",
"end_time": "string",
"instance_start_time": "2019-08-24T14:15:22Z",
"instance_end_time": "2019-08-24T14:15:22Z",
"description": "string",
"participants": [ ],
"thread_id": "string",
"tag": "string",
"is_pixelstreaming_active": true,
"pixel_streaming_link": "string",
"is_reserved": true
}

Response samples

Content type

application/json

{"_id": "507f1f77bcf86cd799439033",
"duration_minutes": 30,
"status": "cancelled",
"pixel_duration_minutes": 0,
"code": "SESSION001",
"start": "2024-06-15T10:00:00.000Z",
"type": "pixel_streaming",
"scheduled_end_time": "2024-06-15T10:30:00.000Z",
"invite_link": "https://propvr.in/session/SESSION001",
"organization_id": "org_xyz",
"user_id": "user_001",
"project_id": "proj_abc",
"source": "dashboard",
"last_interaction_time": "2024-06-15T10:30:00.000Z",
"config": { },
"is_scheduled": true,
"schedule_time": "2024-06-15T10:00:00.000Z",
"end_time": "2024-06-15T10:30:00.000Z",
"instance_start_time": "2024-06-15T10:00:00.000Z",
"instance_end_time": "2024-06-15T10:30:00.000Z",
"description": "Property viewing session",
"participants": [ ],
"thread_id": "thread_xyz",
"tag": null,
"is_pixelstreaming_active": false,
"pixel_streaming_link": null,
"is_reserved": false
}

Webhooks Units

Webhook events for property units. When you subscribe to unit events, PropVR POSTs payloads to your targetUrl on unit_created, unit_updated, and unit_deleted. Include rules.allowed_projects (array of project IDs) when creating the webhook so only events for those projects are sent.

unit_created

Triggered when a unit is created within any project. PropVR sends a POST request with the complete unit payload to your configured targetUrl.

Rules: During webhook subscription, specify rules.allowed_projects as an array of project IDs. Only unit events from those projects will trigger the webhook.

Authorizations:

BearerAuth

Request Body schema: application/json

_id	string Unit document ID
unitplan_id	string Associated unit plan ID
project_id	string Project ID the unit belongs to
name	string Unit name/label
status	string Unit status. Can be any status defined in Design settings → Status (project-specific, not a fixed enum).
metadata	object Custom key-value metadata for the unit
building_id	string Building identifier
floor	string Floor label
floor_id	string Floor identifier
price	string Unit price as string
max_price	string Maximum price as string
community_id	string Community identifier
currency	string Currency code (e.g. usd, inr)
tour_id	string Virtual tour ID
measurement	number Area measurement value
measurement_type	string Unit of measurement (e.g. sqft, sqmt)
cta_link	string Call-to-action URL
balcony_measurement	number Balcony area measurement
balcony_measurement_type	string Balcony measurement unit
suite_area	number Suite area value
suite_area_type	string Suite area unit
direction	string or null Unit direction (e.g. north, south)
created_at	string <date-time> Creation timestamp (ISO 8601)

Responses

Request samples

Payload

Content type

application/json

{"_id": "string",
"unitplan_id": "string",
"project_id": "string",
"name": "string",
"status": "string",
"metadata": { },
"building_id": "string",
"floor": "string",
"floor_id": "string",
"price": "string",
"max_price": "string",
"community_id": "string",
"currency": "string",
"tour_id": "string",
"measurement": 0,
"measurement_type": "string",
"cta_link": "string",
"balcony_measurement": 0,
"balcony_measurement_type": "string",
"suite_area": 0,
"suite_area_type": "string",
"direction": "string",
"created_at": "2019-08-24T14:15:22Z"
}

Response samples

Content type

application/json

{"_id": "507f1f77bcf86cd799439011",
"unitplan_id": "507f1f77bcf86cd799439012",
"project_id": "proj_abc123",
"name": "Unit 101",
"status": "available",
"metadata": { },
"building_id": "bld_001",
"floor": "1",
"floor_id": "floor_001",
"price": "1000000",
"max_price": "1200000",
"community_id": "comm_001",
"currency": "usd",
"tour_id": "tour_abc123",
"measurement": 1250,
"measurement_type": "sqft",
"cta_link": "https://example.com/cta",
"balcony_measurement": 100,
"balcony_measurement_type": "sqft",
"suite_area": 1150,
"suite_area_type": "sqft",
"direction": "north",
"created_at": "2024-06-15T10:00:00.000Z"
}

unit_updated

Triggered when a unit is updated within any project. PropVR sends a POST request with the complete unit payload to your configured targetUrl.

Rules: During webhook subscription, specify rules.allowed_projects as an array of project IDs. Only unit events from those projects will trigger the webhook.

Authorizations:

BearerAuth

Request Body schema: application/json

_id	string Unit document ID
unitplan_id	string Associated unit plan ID
project_id	string Project ID the unit belongs to
name	string Unit name/label
status	string Unit status. Can be any status defined in Design settings → Status (project-specific, not a fixed enum).
metadata	object Custom key-value metadata for the unit
building_id	string Building identifier
floor	string Floor label
floor_id	string Floor identifier
price	string Unit price as string
max_price	string Maximum price as string
community_id	string Community identifier
currency	string Currency code (e.g. usd, inr)
tour_id	string Virtual tour ID
measurement	number Area measurement value
measurement_type	string Unit of measurement (e.g. sqft, sqmt)
cta_link	string Call-to-action URL
balcony_measurement	number Balcony area measurement
balcony_measurement_type	string Balcony measurement unit
suite_area	number Suite area value
suite_area_type	string Suite area unit
direction	string or null Unit direction (e.g. north, south)
created_at	string <date-time> Creation timestamp (ISO 8601)

Responses

Request samples

Payload

Content type

application/json

{"_id": "string",
"unitplan_id": "string",
"project_id": "string",
"name": "string",
"status": "string",
"metadata": { },
"building_id": "string",
"floor": "string",
"floor_id": "string",
"price": "string",
"max_price": "string",
"community_id": "string",
"currency": "string",
"tour_id": "string",
"measurement": 0,
"measurement_type": "string",
"cta_link": "string",
"balcony_measurement": 0,
"balcony_measurement_type": "string",
"suite_area": 0,
"suite_area_type": "string",
"direction": "string",
"created_at": "2019-08-24T14:15:22Z"
}

Response samples

Content type

application/json

{"_id": "507f1f77bcf86cd799439011",
"unitplan_id": "507f1f77bcf86cd799439012",
"project_id": "proj_abc123",
"name": "Unit 101",
"status": "reserved",
"metadata": { },
"building_id": "bld_001",
"floor": "1",
"floor_id": "floor_001",
"price": "950000",
"max_price": "1200000",
"community_id": "comm_001",
"currency": "usd",
"tour_id": "tour_abc123",
"measurement": 1250,
"measurement_type": "sqft",
"cta_link": "https://example.com/cta",
"balcony_measurement": 100,
"balcony_measurement_type": "sqft",
"suite_area": 1150,
"suite_area_type": "sqft",
"direction": "north",
"created_at": "2024-06-15T10:00:00.000Z"
}

unit_deleted

Triggered when a unit is deletede within any project. PropVR sends a POST request with the complete unit payload to your configured targetUrl.

Rules: During webhook subscription, specify rules.allowed_projects as an array of project IDs. Only unit events from those projects will trigger the webhook.

Authorizations:

BearerAuth

Request Body schema: application/json

_id	string Unit document ID that was deleted
result	string Deletion result message

Responses

Request samples

Payload

Content type

application/json

{"_id": "string",
"result": "unit deleted"
}

Response samples

Content type

application/json

{"_id": "507f1f77bcf86cd799439011",
"result": "unit deleted"
}

iFrame Integration Guide

This guide documents how to embed the Weblite experience into your website using an <iframe>. It covers basic embedding, responsive styling, language switching, and currency configuration.

Quick Start

Embed Weblite into your webpage using the following iframe:

<iframe
  src="https://view.propvr.tech/en/<project-link>"
  class="viewer__iframe"
  allowfullscreen
  loading="lazy"
></iframe>

Replace <project-link> with the Weblite URL shared with you.

1. Basic HTML Embed

Use this HTML structure for a clean, full-screen experience:

<html>
  <body style="margin:0; overflow:hidden;">
    <div class="viewer">
      <iframe
        id="vrframe"
        src="<project-link>"
        class="viewer__iframe"
        allowfullscreen
        frameborder="0"
        loading="lazy"
      ></iframe>
    </div>
  </body>
</html>

2. Responsive Styling (Recommended)

Add the following CSS to ensure proper scaling and responsiveness:

.viewer__iframe {
  width: 100%;
  height: 100%;
}

iframe {
  border: none;
}

Ensure the iframe's parent container has sufficient height (e.g. height: 100vh or a fixed height container).

3. Language Switching

Weblite supports multiple languages. To load a specific language, add the language code directly after the domain.

URL Format

https://view.propvr.tech/{language-code}/{project-link}

Examples

English: https://view.propvr.tech/en/<project-link>
Arabic: https://view.propvr.tech/ar/<project-link>

iFrame Example

<iframe
  src="https://view.propvr.tech/fr/<project-link>"
  class="viewer__iframe"
  allowfullscreen
></iframe>

See Appendix A below for the full list.

4. Currency Switching

Prices can be displayed in different currencies by passing a query parameter.

URL Format

?currency=<currency-code>

Examples

?currency=inr
?currency=usd
?currency=aed

iFrame Example

<iframe
  src="https://view.propvr.tech/en/<project-link>?currency=usd"
  class="viewer__iframe"
  allowfullscreen
></iframe>

See Appendix B below for the full list.

5. Best Practices

Always replace <project-link> with the Weblite URL provided to you
Ensure parent container height is properly defined
Keep allowfullscreen enabled for immersive experience
Use loading="lazy" for better performance

Appendix A – Supported Languages

Weblite supports a wide range of languages. Below is the master list of supported language codes:

Code	Language
en	English
ar	Arabic
fr	French
fr_FR	French (France)
fr_CA	French (Canada)
hi	Hindi
zh_CN	Chinese (Simplified)
zh_TW	Chinese (Traditional)
de	German
es	Spanish
pt	Portuguese
pt_BR	Portuguese (Brazil)
ru	Russian
ja	Japanese
ko	Korean
it	Italian
nl	Dutch
sv	Swedish
tr	Turkish
ur	Urdu
ta	Tamil
te	Telugu
ml	Malayalam
kn	Kannada
mr	Marathi
bn	Bengali
gu	Gujarati
pa	Punjabi
fa	Persian
he	Hebrew
th	Thai
vi	Vietnamese
id	Indonesian
sw	Swahili
zu	Zulu

Appendix B – Supported Currencies

The following currencies are supported:

AED, ARS, AUD, BGN, BRL, BSD, CAD, CHF, CLP, CNY, COP, CZK, DKK, DOP, EGP, EUR, FJD, GBP, GTQ, HKD, HRK, HUF, IDR, ILS, INR, ISK, JPY, KRW, KZT, MXN, MYR, NOK, NZD, PAB, PEN, PHP, PKR, PLN, PYG, RON, RUB, SAR, SEK, SGD, THB, TRY, TWD, UAH, USD, UYU, VND, ZAR, LBP, QAR, JOD

PropVR Unified API (1.0.0)

PropVR Unified API Documentation

Authentication

How to Create a JWT Token

API Paths

Response Format

Unitplans

Create a new unitplan

Authorizations:

Request Body schema: multipart/form-datarequired

Responses

Response samples

Get all unitplans for a project

Authorizations:

path Parameters

Responses

Response samples

Update an existing unitplan

Authorizations:

Request Body schema: multipart/form-datarequired

Responses

Response samples

Delete a unitplan

Authorizations:

path Parameters

Request Body schema: application/jsonrequired

Responses

Request samples

Response samples

Units

Create Filter Units

Authorizations:

header Parameters

Request Body schema: application/jsonrequired

Responses

Request samples

Response samples

Drop Unit Collection Filters

Authorizations:

header Parameters

Request Body schema: application/jsonrequired

Responses

Request samples

Response samples

Update Unit By Metadata

Authorizations:

header Parameters

Request Body schema: application/jsonrequired

Responses

Request samples

Response samples

Webhooks Leads

lead_created

Authorizations:

Request Body schema: application/json

Responses

Request samples

Response samples

lead_updated

Authorizations:

Request Body schema: application/json

Responses

Request samples

Response samples

lead_deleted

Authorizations:

Request Body schema: application/json

Responses

Request samples

Response samples

Webhooks Sessions

session_created

Authorizations:

Request Body schema: application/json

Responses

Request samples

Response samples

session_updated

Authorizations:

Request Body schema: application/json

Request Body schema: multipart/form-data
required

Request Body schema: multipart/form-data
required

Request Body schema: application/json
required

Request Body schema: application/json
required

Request Body schema: application/json
required

Request Body schema: application/json
required
